System Badge Printing

System badges apply to users in selected individual systems. You can create up to 5 badge templates.

Refer to the following information:

Create a Badge Template

To create a badge template, complete the steps below:

Log in to VirtualKeypad.com.
Choose the system with badges enabled, then enter your User Code.
In the menu, go to Badges.
Select the (Add) icon.
Enter the Template Name.

Go to Layout, and configure the following options:
- In Orientation, select Vertical or Horizontal.

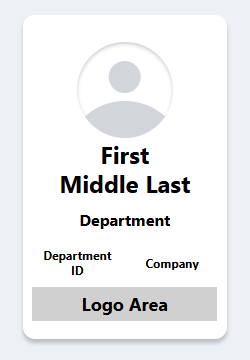

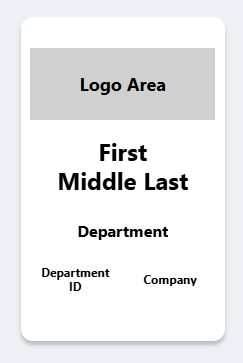

- In Layout, choose the option with an image and a logo at the bottom of the badge, or the option without an image and the logo at the top of the badge.

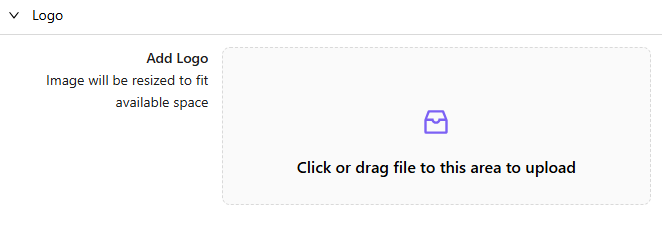

Go to Logo, then click or drag a file to the upload area to add a logo to display on the badge.

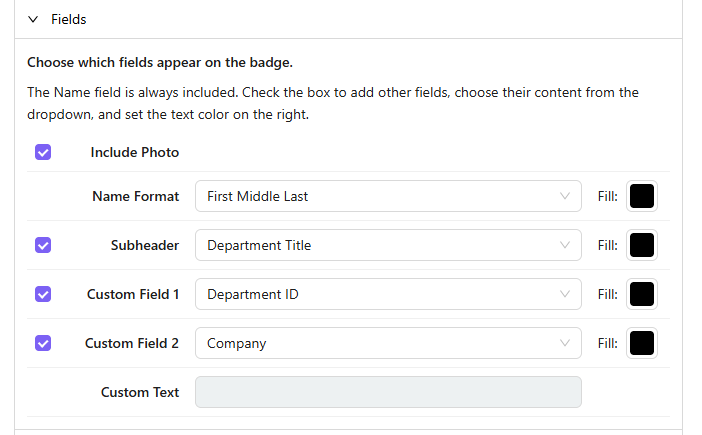

Go to Fields, and configure the options below:
- If you selected the badge layout with an image, keep the Include Photo checkbox selected to display the user’s photo on the badge. Clear the checkbox to remove the photo.
- In Name Format, select one of the following options:
  - First Middle Last (default)
  - First & Last Name
  - First Name
- In Subheader, keep the checkbox selected to display a subheader on the badge. Clear the checkbox to remove the subheader. Select one of the following options:
  - User ID
  - User Title
  - Phone Number
  - Email
  - Department ID (default)
  - Department Title
  - Company
  - Custom Text
- In Custom Field 1, keep the checkbox selected to display a custom field on the badge. Clear the checkbox to remove the custom field. Select one of the following options:
  - User ID
  - User Title
  - Phone Number
  - Email
  - Department ID (default)
  - Department Title
  - Company
  - Custom Text
- In Custom Field 2, keep the checkbox selected to display a custom field on the badge. Clear the checkbox to remove the custom field. Select one of the following options:
  - User ID
  - User Title
  - Phone Number
  - Email
  - Department ID
  - Department Title
  - Company (default)
  - Custom Text
- For each field, you can choose a color fill for the text. Select the box next to Fill to choose a text color.
- If you selected Custom Text, enter the Custom Text in the field.

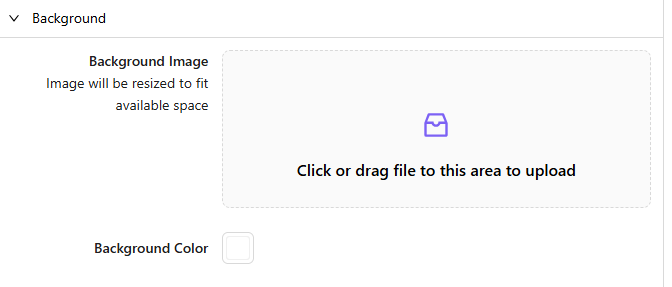

Go to Background, then click or drag a file to the upload area to add a background image, or select a Background Color.

Select Save at the top of the screen. The template appears in the Badges list.

Print Badges

To print badges, complete the steps below:

Log in to VirtualKeypad.com.
Choose the system with badges enabled, then enter your User Code.
In the menu, go to Users.
Select the user you want to print a badge for.
Select Print Badges at the top of the screen. You are brought to the Print Badge page.

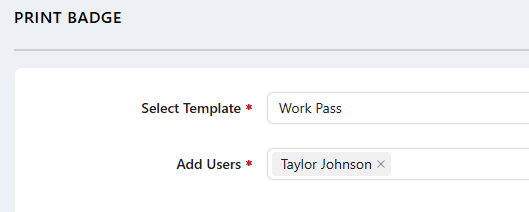

In Select Template, choose the template you want to print for the selected users.

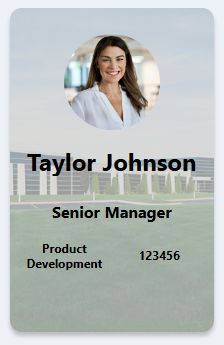

In Add Users, you can add additional users you want to print the badge for. View the preview on the right side of the screen to ensure the badge appears as intended.

Select Print at the top of the page.

Configure your print options, then select Print.

More Information

Edit a Badge Template

To edit a badge template, complete the steps below:

Log in to VirtualKeypad.com.
Choose the system with badges enabled, then enter your User Code.
In the menu, go to Badges.
Select the badge template you want to edit.
Make changes as needed, then select Save at the top of the screen.

Delete a Badge Template

To delete a badge template, complete the steps below:

Log in to VirtualKeypad.com.
Choose the system with badges enabled, then enter your User Code.
In the menu, go to Badges.
Select the the (More) icon, then select Delete. You can also select the badge template, then select Delete at the top of the screen.
